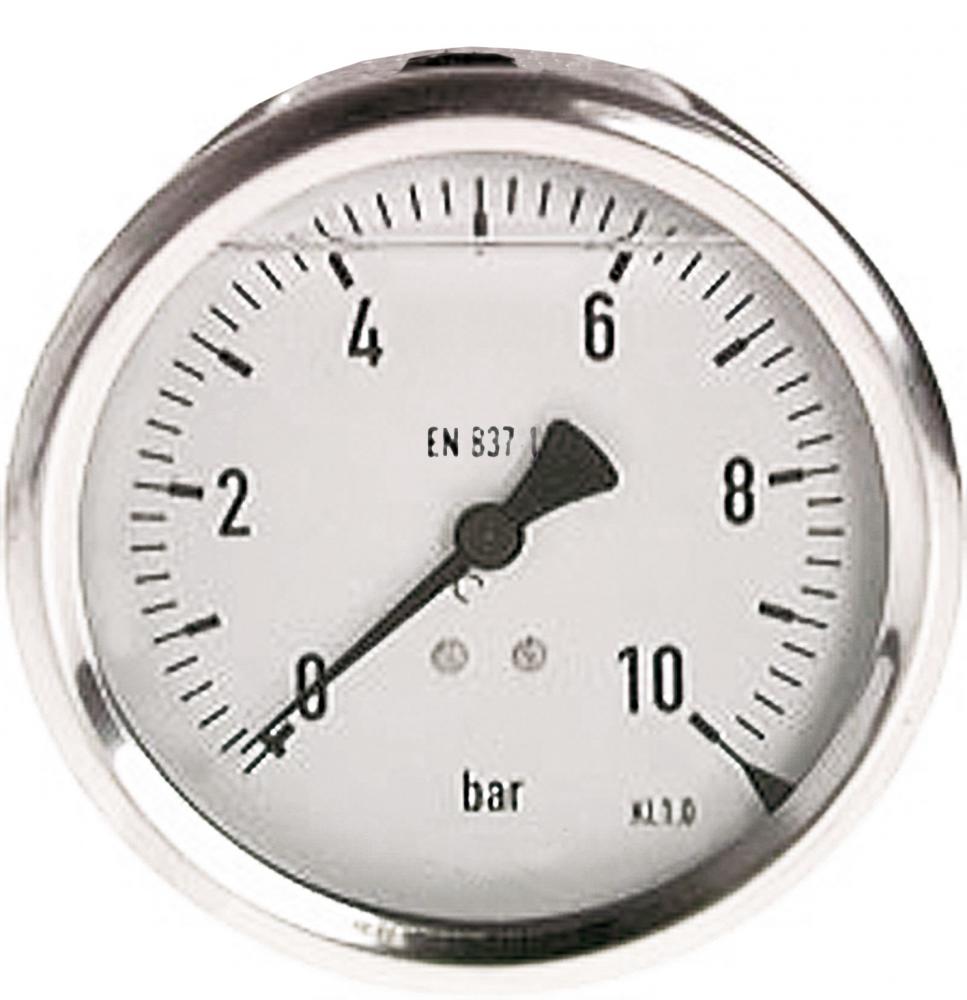

Manometer mit Glyzerinfüllung
Abgang waagerecht


Bauart: Rohrfeder
Klasse: 1,6 (Ø 63mm),
1,0 (Ø 100mm)
Gehäuse: Edelstahl, 1.4301
Anschluß+Innenteile: Messing blank

Temperatur: -20°C bis +60°C

tmb_zp-MANDFWG

NG a b b2 D1 D2 e f G h SW Gewicht kg
63 13 32 56 68 62 6,5 —- G 1/4" B 54 14 0,21
100 15,5 48 81,5 107 100 8 30 G l/2"“ B 87 22 0,8

pf-MAN-E-W_50_2

Ausführung Ø63

Bar Art.-NR. Ø63
Typ G Ø bar


Art.-NR. Ø100
Typ G Ø bar
-1-0 446/96021 VAC-E-1/4W-63G

446/96031 VAC-E-1/2W-100G
0-1 446/43021 MAN-E-1/4W-63-1,0G

446/43521 MAN-E-1/2W-100-1,0G
0-1,6 446/43031 MAN-E-1/4W-63-1,6G

446/43531 MAN-E-1/2W-100-1,6G
0-2,5 446/43041 MAN-E-1/4W-63-2,5G

446/43541 MAN-E-1/2W-100-2,5G
0-4 446/43051 MAN-E-1/4W-63- 4G

446/43551 MAN-E-1/2W-100- 4G
0-6 446/43061 MAN-E-1/4W-63- 6G

446/43561 MAN-E-1/2W-100- 6G
0-10 446/43071 MAN-E-1/4W-63- 10G

446/43571 MAN-E-1/2W-100- 10G
0-16 446/43081 MAN-E-1/4W-63- 16G

446/43581 MAN-E-1/2W-100- 16G
0-25 446/43091 MAN-E-1/4W-63- 25G

446/43591 MAN-E-1/2W-100- 25G
0-40 446/43101 MAN-E-1/4W-63- 40G

446/43601 MAN-E-1/2W-100- 40G
0-60 446/43111 MAN-E-1/4W-63- 60G

446/43611 MAN-E-1/2W-100- 60G
0-100 446/43121 MAN-E-1/4W-63-100G

446/43621 MAN-E-1/2W-100-100G

pf-MAN-E-W100_50_2

Ausführung Ø100
