Steckverbindungen aus Kunststoff

Stecknippel mit Schlauchtülle

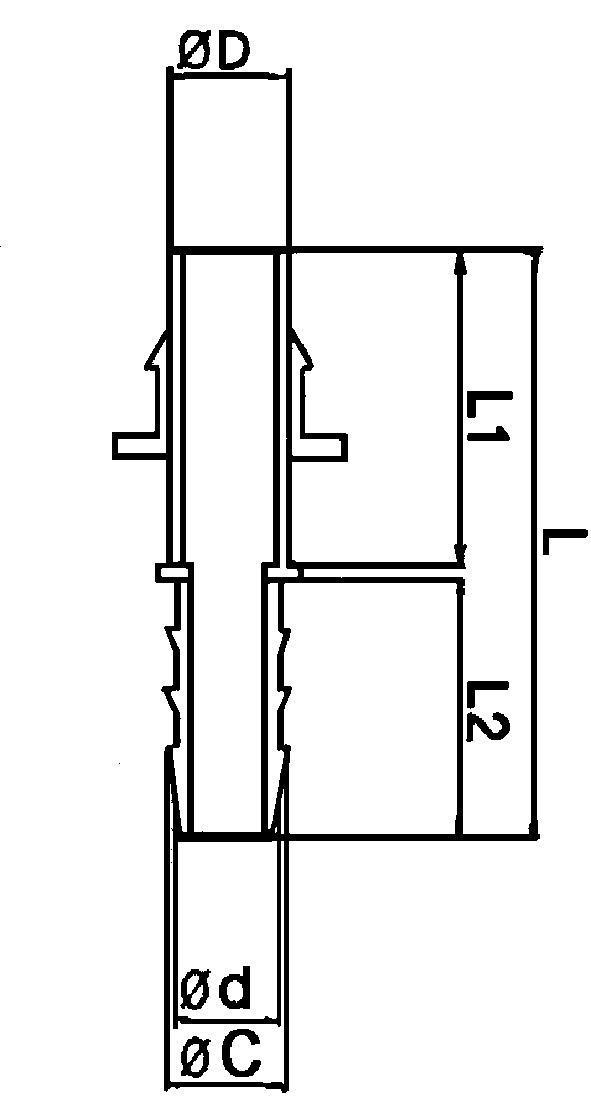

Art.-Nr. Typ    D d   L L1 L2
41450401 893K-4-4   36,0 18,0 17,0
41450411 893K-4-5   36,0 18,0 17,0
41450421 893K-6-5   41,0 23,0 17,0
41450431 893K-6-6   41,0 23,0 17,0
41450441 893K-8-6   43,0 25,0 17,0
41450451 893K-8-8   48,2 25,0 22,0
41450461 893K-10-8   50,2 27,0 22,0
41450471 893K-12-8   54,2 31,0 22,0
41450481 893K-12-10   54,7 31,0 22,5
41450491 893K-12-13   55,0 31,0 22,5
41450501 893K-14-14   59,5 35,5 22,5



Material: Gehäuse:          PBT (schwarz)
Dichtungen:      NBR (Perbunan)
Spannzange:     Edelstahl
Lösering:           POM blau

Medium: Druckluft und andere neutrale Medien
Temperatur: -20°C bis max. +80°C
Druck: -0,95 bis 20 bar
zul. Toleranz [mm]: Rohr / Schlauch- Du 4-5mm: - 0,07/+0,05
                         Du 6-14mm: - 0,10/+0,05
