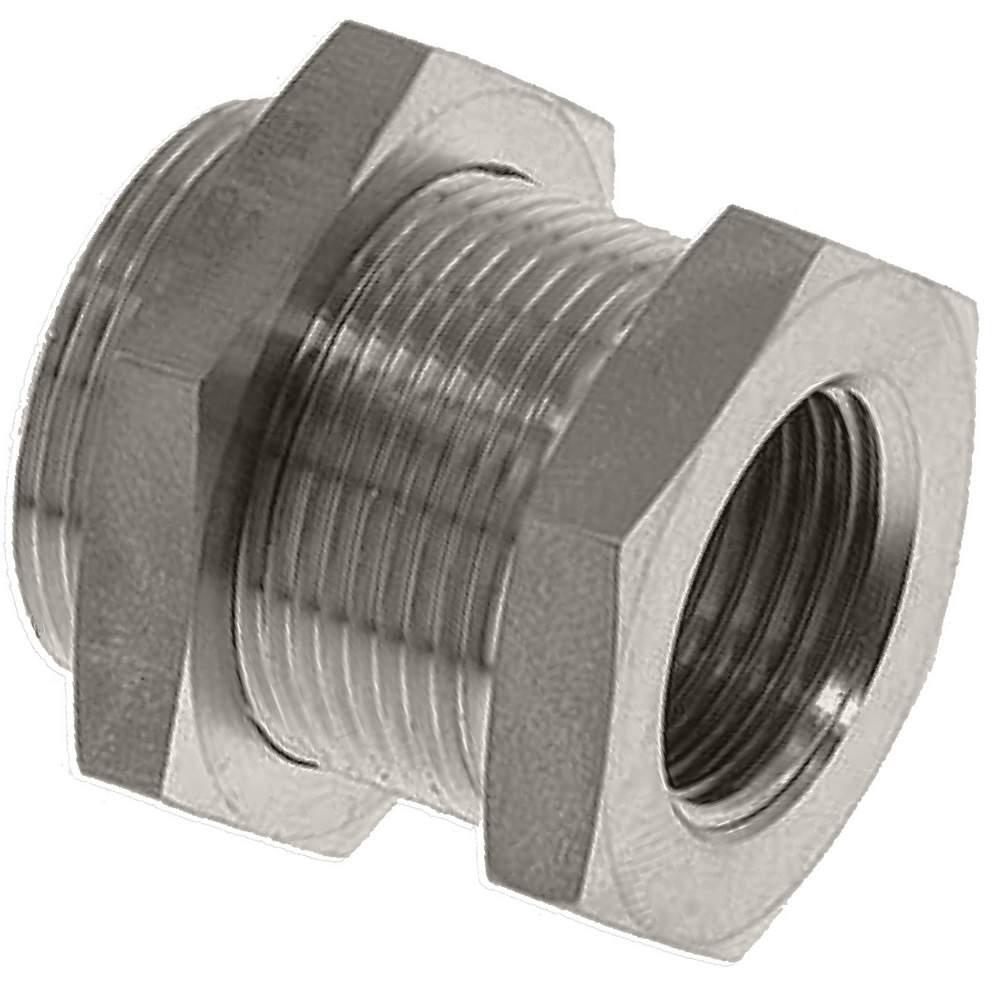

Reduzier-Schottnippel  Edelstahl AISI 316 / 1.4408

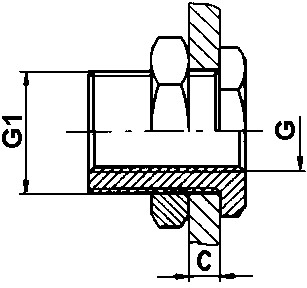

Art.-Nr. Typ    G1     G   G   C max. Bohrung
31207221 E271-1/4"-1/8"    1/8"   10,0 14,0
31207231 E271-3/8"-1/4"    1/4"   11,9 17,0
31207241 E271-1/2"-3/8"    3/8"   13,0 22,0
31207253 E271-M28x1,5-1/2"    1/2"   19,3 28,5
31207263 E271-M34x2-3/4“    3/4"   24,0 34,5
31207273 E271-M42x2- 1“   1"   26,0 42,5
31207293 E271-M49x2-11/4“   11/4"   29,5 49,5
31207313 E271-M54x2-11/2“   11/2"   29,0 54,5



Einsatzbereich: allgemeiner Maschinenbau, Vakuumtechnik, Handhabungstechnik, Fördertechnik, Lebensmitteltechnik, Automationstechnik, Getränkeindustrie, Armaturen, Pumpen, Rührwerke
Material: AISI 316Ti / 1.4571
Druck: 40 bar
Gewinde: BSP zylindrisch (ISO 228)
