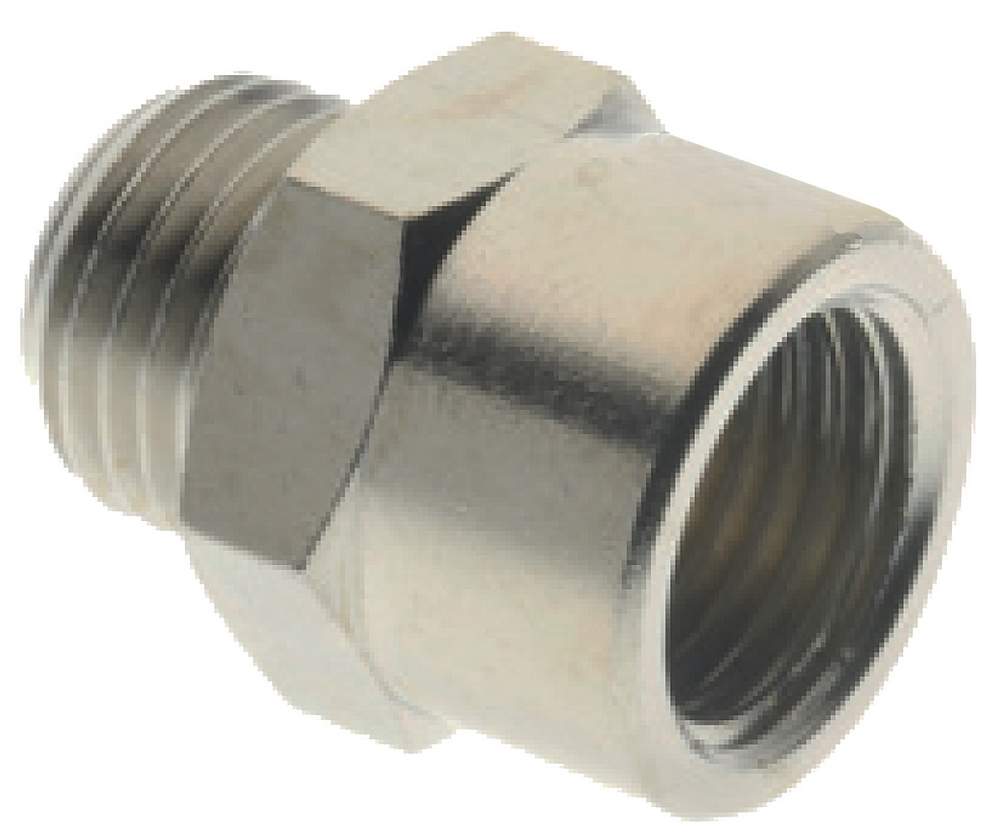

Aufreduziernippel, Ms vern.

Außengewinde zylindrisch mit beigefügtem PVC-Dichtring

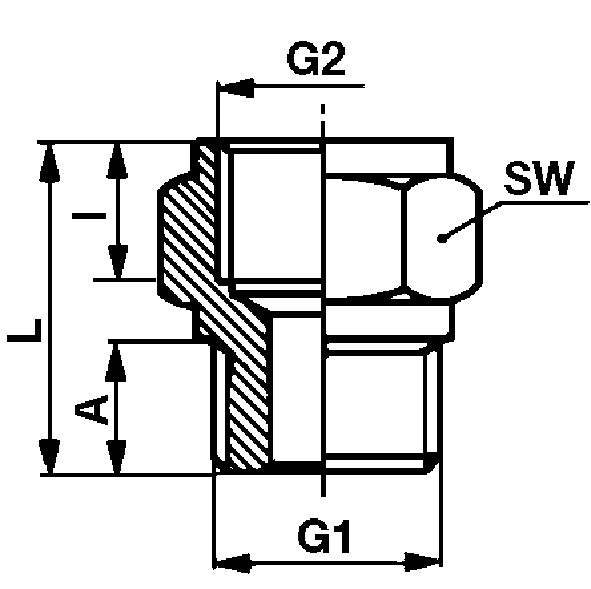

Art.-Nr. Typ    G1 G2 SW   L A I NW
41106200 252M-M5-M5 8   11 4 2,5 2,5
41106210 252M-M5-1/8 14   15 5 8,5 2,5
41106220 252M-1/8-1/8 14   17 6 9,5 6,0
41106230 252M-1/8-1/4 17   20 6 7,0 5,5
41106240 252M-1/8-3/8 22   21 7 10,0 5,5
41106250 252M-1/8-1/2 24   24 6 15,0 5,0
41106260 252M-1/4-1/4 17   22 8 11,5 8,5
41106270 252M-1/4-3/8 22   22 8 11,0 8,0
41106280 252M-1/4-1/2 27   25 8 12,0 8,0
41106290 252M-3/8-3/8 22   23 8 11,0 11,0
41106300 252M-3/8-1/2 27   26 10 13,0 11,5
41106306 252M-3/8-3/4 32   27 10 12,5 11,0
41106310 252M-1/2-1/2 27   26 10 12,0 15,0
41106320 252M-1/2-3/4 32   28 11 14,0 15,0
41106330 252M-1/2- 1 38   29 11 14,0 15,5
41106340 252M-3/4-3/4 32   29 12 14,0 18,5
41106350 252M-3/4- 1 38   29 11 13,5 19,5
41106360 252M- 1 - 1 38   30 12 14,0 25,0
