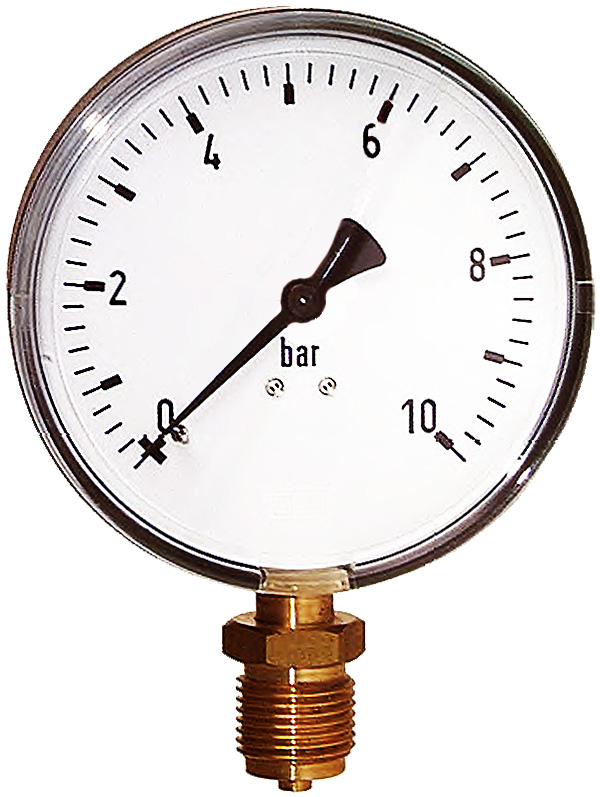

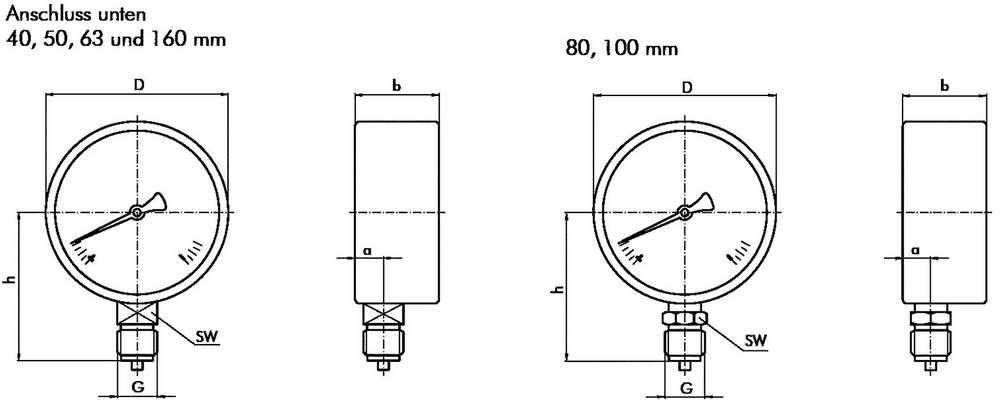

Manometer senkrecht


Kunststoffgehäuse


Kunststoffgehäuse
Bar Art.NR.

 Ø 40

Typ       G      Ø  bar

 Bar Art.NR.

 Ø 50

Typ.       G    Ø  bar
-1-0 446900115 VAC -K-1/8S-40-0 -1-0 446902215 VAC -K-1/4S-50-0
0-1,6 44621031 MAN-K-1/8S-40-1,6 0-1 44621221 MAN-K-1/4S-50-1,0
0-2,5 44621041 MAN-K-1/8S-40-2,5 0-1,6 44621231 MAN-K-1/4S-50-1,6
0-4 44621051 MAN-K-1/8S-40- 4 0-2,5 44621241 MAN-K-1/4S-50-2,5
0-6 44621061 MAN-K-1/8S-40- 6 0-4 44621251 MAN-K-1/4S-50- 4
0-10 44621071 MAN-K-1/8S-40-10 0-6 44621261 MAN-K-1/4S-50- 6
0-16 44621081 MAN-K-1/8S-40-16 0-10 44621271 MAN-K-1/4S-50-10
0-25 44621091 MAN-K-1/8S-40-25 0-16 44621281 MAN-K-1/4S-50-16
0-40 44621101 MAN-K-1/8S-40-40 0-25 44621291 MAN-K-1/4S-50-25
      0-40 44621301 MAN-K-1/4S-50-40
      0-60 44621311 MAN-K-1/4S-50-60
      0-100 44621321 MAN-K.1/4S-50-100






Kunststoffgehäuse
Kunststoffgehäuse
Bar Art.-NR. Ø63
Typ       G      Ø   bar		    Bar Art.-NR. Ø80
Typ      G      Ø   bar
-1-0 446905215 VAC-K-1/4S-63-0   -1-0 446906215 VAC-K-1/2S-80-0
-1-0,6 4469052152 VAC-K-1/4S-63-0,6   -1-1,5 4469062152 VAC-K-1/2S-80-1,5
-1-1,5 4469052153 VAC-K-1/4S-63-1,5   -1-3 4469062153 VAC-K-1/2S-80-3
-1-3 4469052154 VAC-K-1/4S-63-3   -1-5 4469062154 VAC-K-1/2S-80-5
-1-5 4469052155 VAC-K-1/4S-63-5   -1-9 4469062155 VAC-K-1/2S-80-9
-1-9 4469052156 VAC-K-1/4S-63-9   -1-15 4469062156 VAC-K-1/2S-80-15
-1-15 4469052157 VAC-K-1/4S-63-15   0-1 44621721 MAN-K-1/2S-80-1
0-0,6 44621520 MAN-K-1/4S-63-0,6   0-1,6 44621731 MAN-K-1/2S-80-1,6
0-1 44621521 MAN-K-1/4S-63-1   0-2,5 44621741 MAN-K-1/2S-80-2,5
0-1,6 44621531 MAN-K-1/4S-63-1,6   0-4 44621751 MAN-K-1/2S-80- 4
0-2,5 44621541 MAN-K-1/4S-63-2,5   0-6 44621761 MAN-K-1/2S-80- 6
0-4 44621551 MAN-K-1/4S-63- 4   0-10 44621771 MAN-K-1/2S-80-10
0-6 44621561 MAN-K-1/4S-63- 6   0-16 44621781 MAN-K-1/2S-80-16
0-10 44621571 MAN-K-1/4S-63-10   0-25 44621791 MAN-K-1/2S-80-25
0-16 44621581 MAN-K-1/4S-63-16   0-40 44621801 MAN-K-1/2S-80-40
0-25 44621591 MAN-K-1/4S-63-25   0-60 44621811 MAN-K-1/2S-80-60
0-40 44621601 MAN-K-1/4S-63-40
0-60 44621611 MAN-K-1/4S-63-60
0-100 44621621 MAN-K-1/4S-63-100
0-160 446216 MAN-K-1/4S-63-160
0-250 446216 MAN-K-1/4S-63-250
0-315 446216 MAN-K-1/4S-63-315
0-400 446216 MAN-K-1/4S-63-400






Kunststoffgehäuse

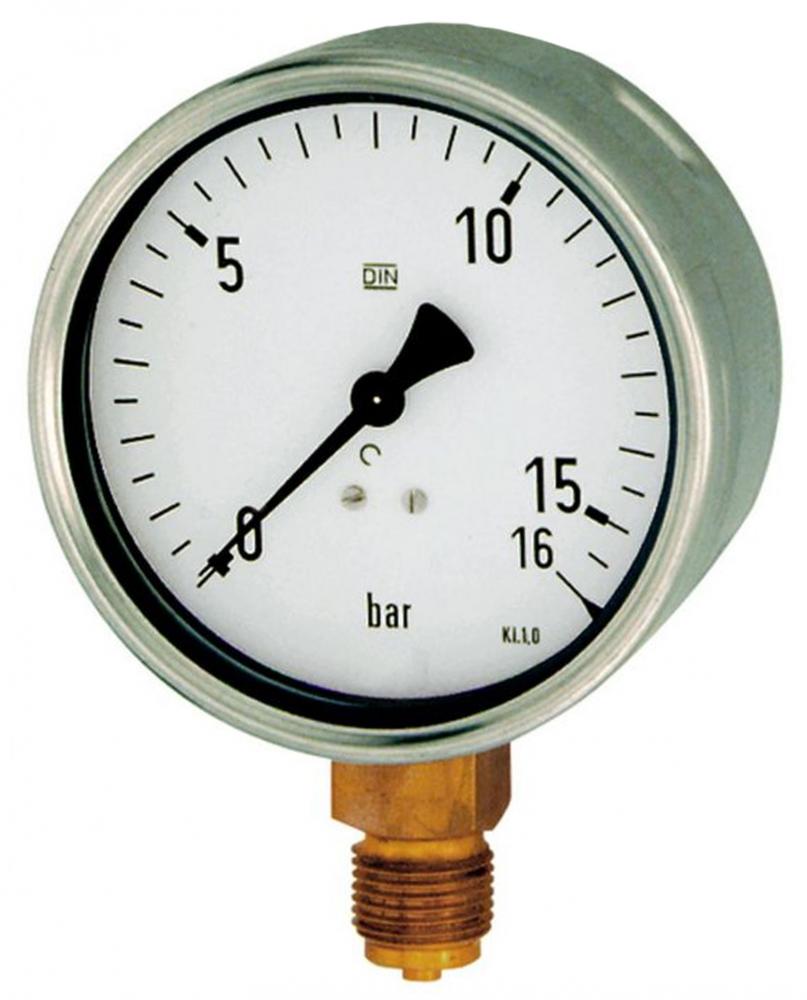

Edelstahlgehäuse


bar Art.-NR. Ø100
Typ       G       Ø   bar		   Gehäuse:
  Edelstahl		  Art.-NR. Ø160
Typ       G       Ø   bar
-1-0 446907415 VAC-K-1/2S-100-0 446907615 VAC-St-1/2S-160-0
-1-0,6 446907415 VAC-K-1/2S-100-0,6 - -
-1-1,5 446907415 VAC-K-1/2S-100-1,5 446907615 VAC-St-1/2S-160-1,5
-1-3 446907415 VAC-K-1/2S-100-3 446907615 VAC-St-1/2S-160-3
-1-5 446907415 VAC-K-1/2S-100-5 446907615 VAC-St-1/2S-160-5
-1-9 446907415 VAC-K-1/2S-100-9 446907615 VAC-St-1/2S-160-9
-1-15 446907415 VAC-K-1/2S-100-15 446907615 VAC-St-1/2S-160-15
0-0,6 44621920 MAN-K-1/2S-100-0,6 44623120 MAN-St-1/2S-160-0,6
0-1 44621921 MAN-K-1/2S-100-1 44623121 MAN-St-1/2S-160-1
0-1,6 44621931 MAN-K-1/2S-100-1,6 44623131 MAN-St-1/2S-160-1,6
0-2,5 44621941 MAN-K-1/2S-100-2,5 44623141 MAN-St-1/2S-160-2,5
0-4 44621951 MAN-K-1/2S-100- 4 44623151 MAN-St-1/2S-160- 4
0-6 44621961 MAN-K-1/2S-100- 6 44623161 MAN-St-1/2S-160- 6
0-10 44621971 MAN-K-1/2S-100- 10 44623171 MAN-St-1/2S-160-10
0-16 44621981 MAN-K-1/2S-100-16 44623181 MAN-St-1/2S-160-16
0-25 44621991 MAN-K-1/2S-100-25 44623191 MAN-St-1/2S-160-25
0-40 44622001 MAN-K-1/2S-100-40 44623201 MAN-St-1/2S-160-40
0-60 44622011 MAN-K-1/2S-100-60
0-100 44622021 MAN-K-1/2S-100-100



zp-MANSd



Bauart: Rohrfeder
Klasse: 2,5 / Ø160 = 1.0
Gehäuse: Kunststoff (ABS), schwarz / Ø160 = 1.4301
Sichtscheibe: Polycarbonat
Anschluß+Innenteile: Messing blank
Temperatur: -20°C bis +80°C
Anwendung: Für gasförmige und flüssige, nicht hochviskose und nicht kristallisierende Messstoffe, die Kupferlegierungen nicht schädigen
• Pneumatik
• Heizungs- und Klimatechnik
• Medizintechnik
