4-fach-Y-Winkel-Einschraubverbindung

Gewinde: drehbar, zylindrisch mit NBR-O-Ring, Metallteile: Ms vern.

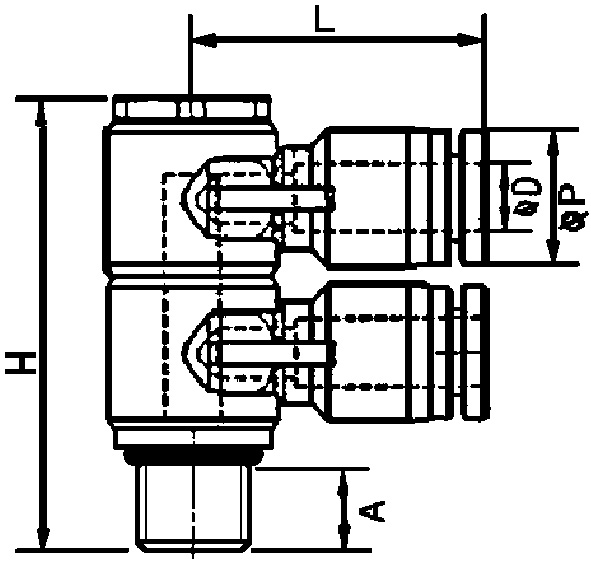

Art.-Nr. Typ    D  G SW H ØP L A
41449701 825K-4-1/8 13 51,0 10,4 22,3 5,0
41449711 825K-6-1/8 13 51,0 12,4 26,5 5,0
41449721 825K-6-1/4 16 63,0 12,4 26,5 6,0
41449731 825K-6-3/8 20 74,0 12,4 26,5 7,0
41449741 825K-8-1/8 13 51,0 14,4 29,1 5,0
41449751 825K-8-1/4 16 63,0 14,4 29,1 6,0
41449761 825K-8-3/8 20 74,0 14,4 29,1 7,0
41449771 825K-10-3/8 20 74,0 17,6 34,3 7,0
41449781 825K-10-1/2 24 79,5 17,6 34,3 8,5
41449791 825K-12-3/8 20 74,0 21,2 38,3 7,0
41449796 825K-12-1/2 24 79,5 21,2 38,3 8,5
