Verschraubungen aus Messing vernickelt

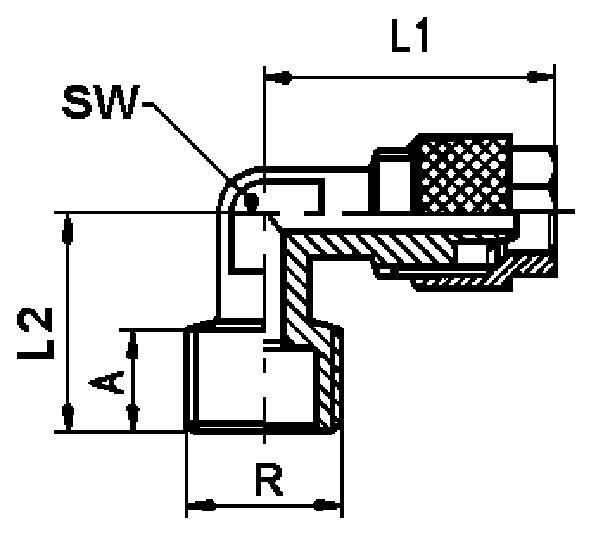

Winkel-Einschraubverschraubung

Gewinde konisch, starr

Art.-Nr. Typ       D/d    R SW   L1  L2 A NW 41101013 151M-4,3/3S-1/8K 8   17,0 18,0  7,5 2,3 41101011 151M-5/3-1/8K 8   18,5  15,0  7,5 2,0 41101021 151M-6/4-1/8K 8   18,5  15,0  7,5 3,0 41101031 151M-6/4-1/4K 8   20,6  19,0  11,0 3,0 41101033 151M-6/4-3/8K 9   21,0  20,5  11,5 3,0 41101041 151M-8/6-1/8K 9   19,9  16,5  7,5 5,0 41101051 151M-8/6-1/4K 9   21,9  19,0  11,0 5,0 41101061 151M-8/6-3/8K 9   23,4  21,0  11,5 5,0 41101066 151M-8/6-1/2K 16   23,4  28,0  14,0 5,0 41101071 151M-10/8-1/8K 11   24,0  21,0  7,5 5,5 41101081 151M-10/8-1/4K 11   24,0  22,0  11,0 7,0 41101091 151M-10/8-3/8K 11   25,5  22,0  11,5 7,0 41101101 151M-10/8-1/2K 16   25,5  28,0  14,0 7,0 41101131 151M-12/10-3/8K 13   27,0  22,5  11,5 7,5 41101141 151M-12/10-1/2K 16   27,0  28,0  14,0 8,5 41101149 151M-15/12,5-1/2K 16   31,5  28,0  14,0 11,0 411011493 151M-17,6/13S-1/2K 17   32,5  29,0  14,1 11,1
