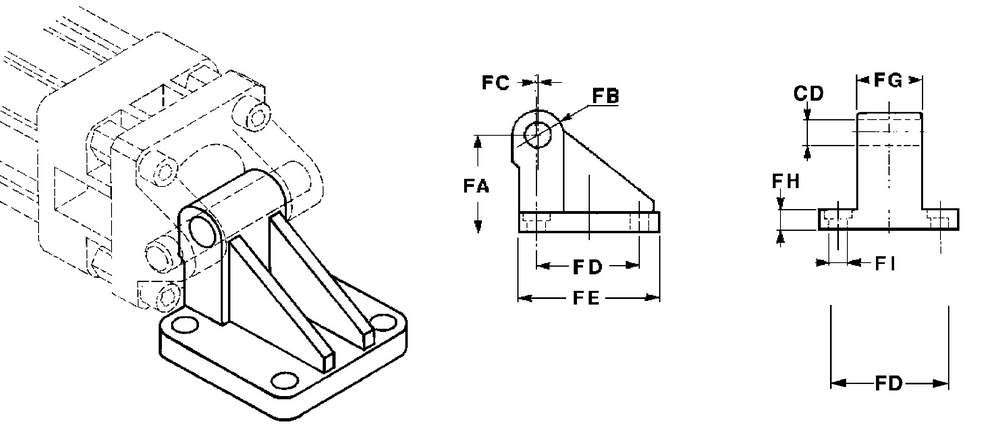

Gegengelenk 90° KF-19 für Standardzylinder ISO 15552
(Lagerbock) ohne Bolzen
|
||||||||||||||||||||||||||||||||||||
 |
 |
|||||||||||
| Art.-Nr. | Kolben -Ø |
E | FB H13 |
MF ±0,2 |
R JS14 |
TF JS14 |
UF | W | W Toll. |
ZF | ZF Toll. |
Gewicht |
| KF-19032 | 32 | 45 | 7 | 10 | 32 | 64 | 80 | 16 | ±1,6 | 130 | ±1,25 | 0,09 Kg |
| KF-19040 | 40 | 52 | 9 | 10 | 36 | 72 | 90 | 20 | ±1,6 | 145 | ±1,25 | 0,12 Kg |
| KF-19050 | 50 | 65 | 9 | 12 | 45 | 90 | 110 | 25 | ±1,6 | 155 | ±1,25 | 0,20 Kg |
| KF-19063 | 63 | 75 | 9 | 12 | 50 | 100 | 120 | 25 | ±2,0 | 170 | ±1,6 | 0,32 Kg |
| KF-19080 | 80 | 95 | 12 | 16 | 63 | 125 | 150 | 30 | ±2,0 | 190 | ±1,6 | 0,58 Kg |
| KF-19100 | 100 | 115 | 14 | 16 | 75 | 150 | 170 | 35 | ±2,0 | 205 | ±1,6 | 0,91 Kg |
| KF-19125 | 125 | 140 | 16 | 20 | 90 | 180 | 205 | 45 | ±2,5 | 245 | ±2,0 | 1,00 Kg |
