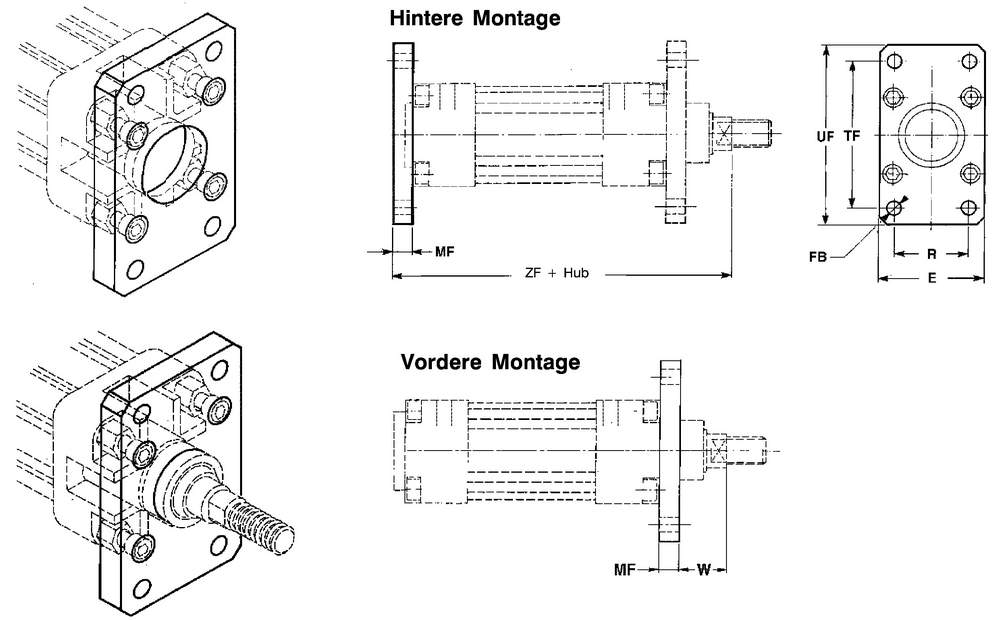

Flanschbefestigung KF-12 ISO MF1/MF2 für Standardzylinder ISO 6432
|
||||||||||||||||||||||||||||||||||||
|
|
 |
|||||||||||
| Art.-Nr. | Kolben -Ø |
E | FB H13 |
MF +0,2 |
R JS14 |
TF JS14 |
UF | W Norm. |
W Toll. |
ZF | XA Toll. |
Gewicht |
| KF-12032 | 32 | 45 | 7 | 10 | 32 | 64 | 80 | 16 | ±1,60 | 130 | ±1,25 | 0,20 Kg |
| KF-12040 | 40 | 52 | 9 | 10 | 36 | 72 | 90 | 20 | ±1,60 | 145 | ±1,25 | 0,25 Kg |
| KF-12050 | 50 | 65 | 9 | 12 | 45 | 90 | 110 | 25 | ±1,60 | 155 | ±1,25 | 0,50 Kg |
| KF-12063 | 63 | 75 | 9 | 12 | 50 | 100 | 120 | 25 | ±2,00 | 170 | ±1,60 | 0,65 Kg |
| KF-12080 | 80 | 95 | 12 | 16 | 63 | 125 | 150 | 30 | ±2,00 | 190 | ±1,60 | 1,50 Kg |
| KF-12100 | 100 | 115 | 14 | 16 | 75 | 150 | 170 | 35 | ±2,00 | 205 | ±1,60 | 2,20 Kg |
| KF-12125 | 125 | 140 | 16 | 20 | 90 | 180 | 205 | 40 | ±2,50 | 245 | ±2,00 | 4,10 Kg |
