Dreikant-Frontring Manometer mit Glyzerinfüllung






Bar Art.-Nr.                Ø 63
Typ       G      Ø         bar		    Art.-Nr.                 Ø 100
Typ       G      Ø         bar
-1- 0 44698511 VAC -E-1/4W-63DFW- 0G   44698711 VAC -E-1/2W-100DFW- 0G
-1-0,6 44698521 VAC -E-1/4W-63DFW-0,6G   44698721 VAC -E-1/2W-100DFW-0,6G
-1-1,5 44698531 VAC -E-1/4W-63DFW-1,5G   44698731 VAC -E-1/2W-100DFW-1,5G
-1- 3 44698541 VAC -E-1/4W-63DFW- 3G   44698741 VAC -E-1/2W-100DFW- 3G
-1- 5 44698551 VAC -E-1/4W-63DFW- 5G   44698751 VAC -E-1/2W-100DFW- 5G
-1- 9 44698561 VAC -E-1/4W-63DFW- 9G   44698761 VAC -E-1/2W-100DFW- 9G
-1-15 44698571 VAC -E-1/4W-63DFW-15G   44698771 VAC -E-1/2W-100DFW-15G
 0-0,6 44644311 MAN-E-1/4W-63DFW-0,6G   44644711 MAN-E-1/2W-100DFW-0,6G
 0- 1 44644321 MAN-E-1/4W-63DFW-1,0G   44644721 MAN-E-1/2W-100DFW-1,0G
 0-1,6 44644331 MAN-E-1/4W-63DFW-1,6G   44644731 MAN-E-1/2W-100DFW-1,6G
 0-2,5 44644341 MAN-E-1/4W-63DFW-2,5G   44644741 MAN-E-1/2W-100DFW-2,5G
 0- 4 44644351 MAN-E-1/4W-63DFW- 4G   44644751 MAN-E-1/2W-100DFW- 4G
 0- 6 44644361 MAN-E-1/4W-63DFW- 6G   44644761 MAN-E-1/2W-100DFW- 6G
 0-10 44644371 MAN-E-1/4W-63DFW- 10G   44644771 MAN-E-1/2W-100DFW- 10G
 0-16 44644381 MAN-E-1/4W-63DFW- 16G   44644781 MAN-E-1/2W-100DFW- 16G
 0-25 44644391 MAN-E-1/4W-63DFW- 25G   44644791 MAN-E-1/2W-100DFW- 25G
 0-40 44644401 MAN-E-1/4W-63DFW- 40G   44644801 MAN-E-1/2W-100DFW- 40G
 0-60 44644411 MAN-E-1/4W-63DFW- 60G   44644811 MAN-E-1/2W-100DFW- 60G
 0-100 44644421 MAN-E-1/4W-63DFW-100G   44644821 MAN-E-1/2W-100DFW-100G
 0-160 44644431 MAN-E-1/4W-63DFW-160G   44644831 MAN-E-1/2W-100DFW-160G



Bauart: Rohrfeder
Klasse: 1,6
Gehäuse: Edelstahl 1.4301
Frontring: Edelstahl 1.4301
Sichtscheibe: Polycarbonat
Anschluß+Innenteile: Messing blank

Temperatur:

 Umgebung:    -20 bis +60°C
Medium:        max +60°C
Anwendung: Für gasförmige und flüssige, nicht hochviskose und nicht kristallisierende Messstoffe, die Kupferlegierungen nicht schädigen
• Pneumatik
• Heizungs- und Klimatechnik
• Medizintechnik



zp-MANSd



tmb_zp-MANDFWG2

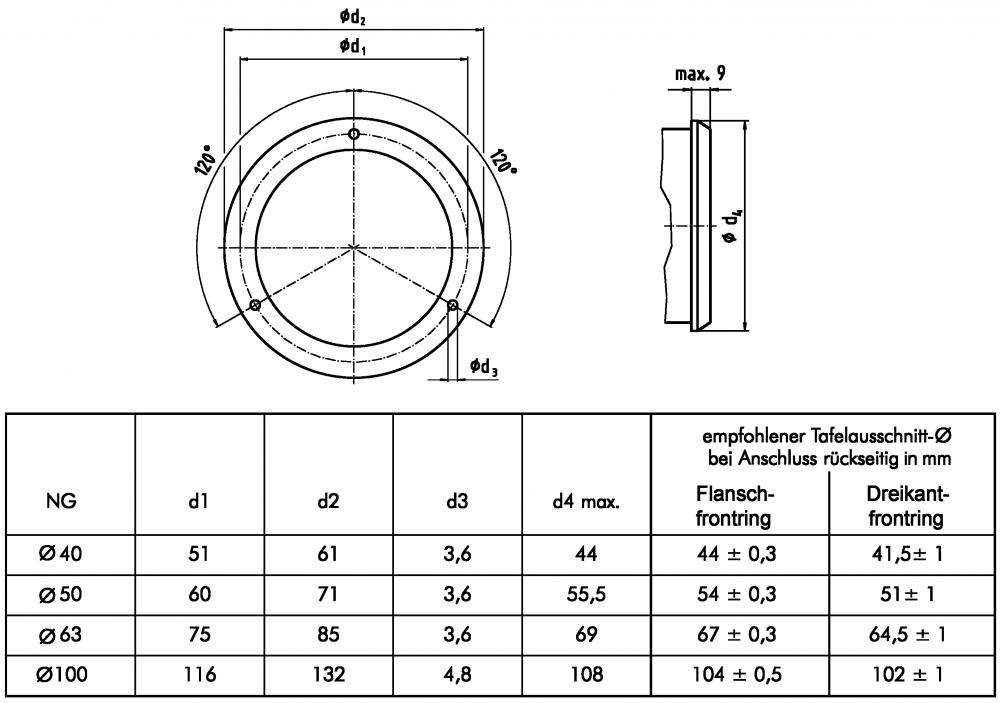

NG 40-63 Anschluss rückseitig zentrisch
NG 100 Anschluss rückseitig exzentrisch
NG a b b2 D1 D2 e f G h SW Gewicht
Ø 63 13 32 56 68 62 6,5 —- G 1/4" B 54 14 0,21 kg
Ø 100 15,5 48 81,5 107 100 8 30 G 1/2" B 87 22 0,80 kg

tmb_zp-MANDFWG1
