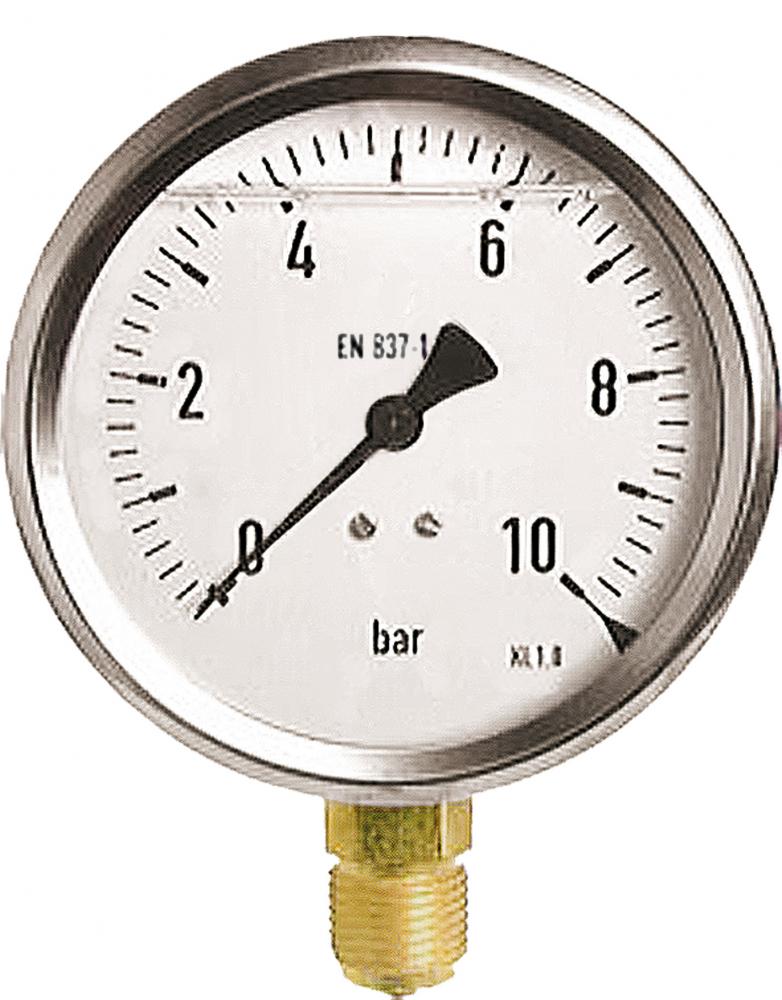

Manometer mit Glycerin senkrecht



Bar Art.-NR. Ø63
Typ G Ø bar
    Art.-NR. Ø100
Typ G Ø bar
-1-0 44697111 VAC-E-1/4S-63-0G     44697211 VAC-E-1/2S-100-0G
-1-0,6 44697121 VAC-E-1/4S-63-0,6G     44697221 VAC-E-1/2S-100-0,6G
-1-1,5 44697131 VAC-E-1/4S-63-1,5G     44697231 VAC-E-1/2S-100-1,5G
-1-3 44697141 VAC-E-1/4S-63-3G     44697241 VAC-E-1/2S-100-3G
-1-5 44697151 VAC-E-1/4S-63-5G     44697251 VAC-E-1/2S-100-5G
-1-9 44697161 VAC-E-1/4S-63-9G     44697261 VAC-E-1/2S-100-9G
-1-15 44697171 VAC-E-1/4S-63-15G     44697271 VAC-E-1/2S-100-15G
0-0,6 44625511 MAN-E-1/4S-63-0,6G     44625711 MAN-E-1/2S-100-0,6G
0-1 44625521 MAN-E-1/4S-63-1G     44625721 MAN-E-1/2S-100-1G
0-1,6 44625531 MAN-E-1/4S-63-1,6G     44625731 MAN-E-1/2S-100-1,6G
0-2,5 44625541 MAN-E-1/4S-63-2,5G     44625741 MAN-E-1/2S-100-2,5G
0-4 44625551 MAN-E-1/4S-63- 4G     44625751 MAN-E-1/2S-100- 4G
0-6 44625561 MAN-E-1/4S-63- 6G     44625761 MAN-E-1/2S-100- 6G
0-10 44625571 MAN-E-1/4S-63-10G     44625771 MAN-E-1/2S-100-10G
0-16 44625581 MAN-E-1/4S-63-16G     44625781 MAN-E-1/2S-100-16G
0-25 44625591 MAN-E-1/4S-63-25G     44625791 MAN-E-1/2S-100-25G
0-40 44625601 MAN-E-1/4S-63-40G     44625801 MAN-E-1/2S-100-40G
0-60 44625611 MAN-E-1/4S-63-60G     44625811 MAN-E-1/2S-100-60G
0-100 44625621 MAN-E-1/4S-63-100G     44625821 MAN-E-1/2S-100-100G
0-160 44625631 MAN-E-1/4S-63-160G     44625831 MAN-E-1/2S-100-160G

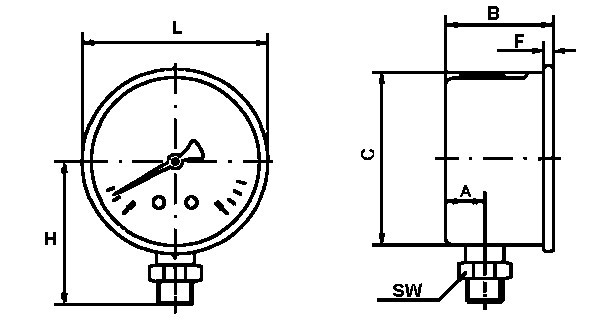

tmb_zp-MAN-E-14S-63
Ø SW L H C B F A
63 12 68 54 62 32 6,5 13,0
100 21 107 87 100 48 8,0 15,5



Bauart: Rohrfeder
Klasse: 1,6  (Ø 63mm)
1,0  (Ø100mm)
Gehäuse: Edelstahl, 1.4301
Sichtscheibe: Polycarbonat
Anschluß+Innenteile: Messing blank

 Temperatur:

Umgebung:    -20 bis +60°C
Medium:        max +60°C
Anwendung: Für gasförmige und flüssige, nicht hochviskose und nicht kristallisierende Messstoffe, die Kupferlegierungen nicht schädigen
• Pneumatik
• Heizungs- und Klimatechnik
• Medizintechnik
